Grande Cube Ice Maker

CIM0835GA

Ice-O-Matic Grande Cube Ice Maker has been specifically designed for restaurants, clubs, and bars looking for the perfect ice to complement the perfect cocktail.

At twice the size of our full-size cube, the grande cube melts slower, looks better, and makes every sip seem classier.

The grande cube not only looks great, but it also comes with machines built for superior reliability and efficiency.

CIM0835FA
CIM0835   30 inch bin
grande cube icon
CIM0835FA
CIM0835   30 inch bin
grande cube icon

Key Features

Grande Cube

This ice machine produces our largest 'Grande Cube' - 31mm(w) x 29mm(d) x 22mm(h)





PURE ICE Built-in Antimicrobial Protection

Built-in anti-microbial protection for the life of the ice maker inhibits bacteria growth on ice maker surfaces. Ice-O-Matic's optional water filtration system provides protection against unpleasant tastes, odors, and scale formation.



High Volume Ice Production

Produces up to 383kg/24hr.

Sanitation

Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.

Unique Dual Exhaust

Air-cooled machines are designed to discharge hot air from both the sides and top of the unit, increasing installation flexibility and reducing the potential of an obstructed exhaust.

Smart LED Light

Indicates machine status and when cleaning is required.

Benefits

Superior Construction

Durable corrosion-resistant stainless steel on the inside and a durable stainless steel finish and industrial-grade fingerprint-proof plastic on the outside.

Harvest Assist

Harvest Assist provides consistent ice production for the life of the ice maker while reducing energy consumption and increasing capacity.

Dual Exhaust

Our modular Ice makers feature ground breaking technology that allows hot-air to discharge from the side and top of the machine.  This allows flexibility on where the machine is positioned without affecting performance.

Highly Configurable

The CIM0835 can be paired with any of the following bins B25, B40, B55, B110, B700

Tech Specs

Dimensions

Width: 768mm

Depth: 616mm

Height: 683mm

Hydraulic

Minimum allowed supply water pressure: 1.0-4.0 bar

Maximum incoming water pressure: 4.1 bar

Minimum incoming water temperature: 4.5 °C

Maximum incoming water temperature: 32°C

Electrical

Amps Required: 16A 1 Phase

Performance

Ice Cube Style: Grande

Net Weight: 105kg

Ice Production 10°C Water 21°C Air: 382kg/24hr

Ice Production 21°C Water 32°C Air: 322kg/24hr

Components

Condensing Unit: Optional Remote (VRC2061B)

Air Cooled Units: Yes

Integral Drain Pump: No

Ice Storage Bin Options

Most Popular with this model: B25, B40, B55

Require Bin Kits to fit: B110

Upright Storage Bin: B700

Downloads for CIM0835

CIM0835 Specification Sheet

CIM0835 Installation Manual

CIM0835 Spare Parts Manual

Ice Storage Bin Options



B25 Bin

B25 Bin

Dimensions (mm): 762 (W) x 711 (H) x 787 (D)

Bin Storage: 112Kg

B40 Bin

B40 Bin

Dimensions (mm): 762 (W) x 953 (H) x 787 (D)

Bin Storage: 156Kg

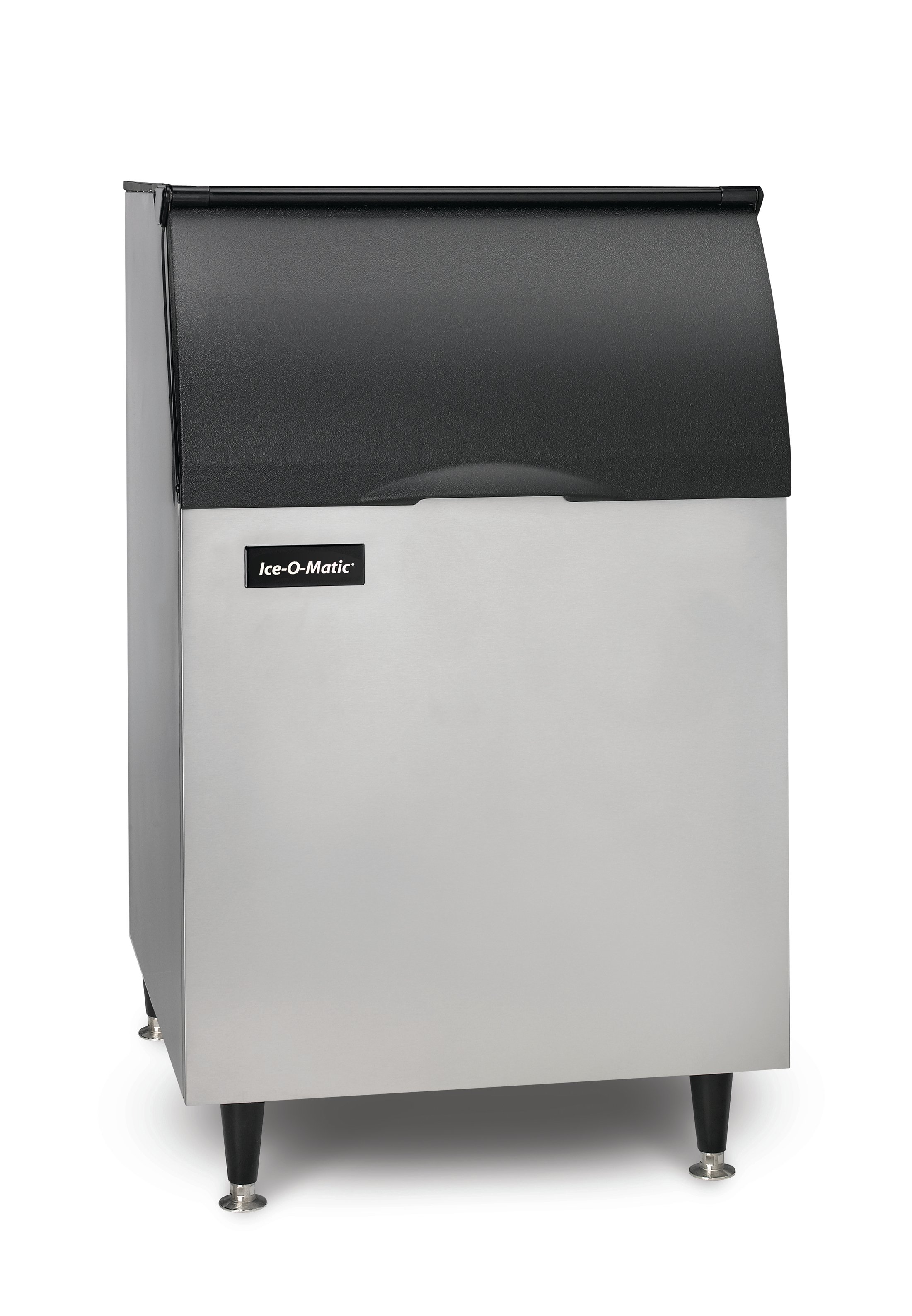

B55 bin

B55 Bin

Dimensions (mm): 762 (W) x 1270 (H) x 787 (D)

Bin Storage: 232Kg

B110 Bin

B110 Bin

Dimensions (mm): 1219 (W) x 1270 (H) x 787 (D)

Bin Storage: 388Kg

B700-30 bin

B700 Bin

Dimensions (mm): 762 (W) x 1524 (H) x 787 (D)

Bin Storage: 308Kg
