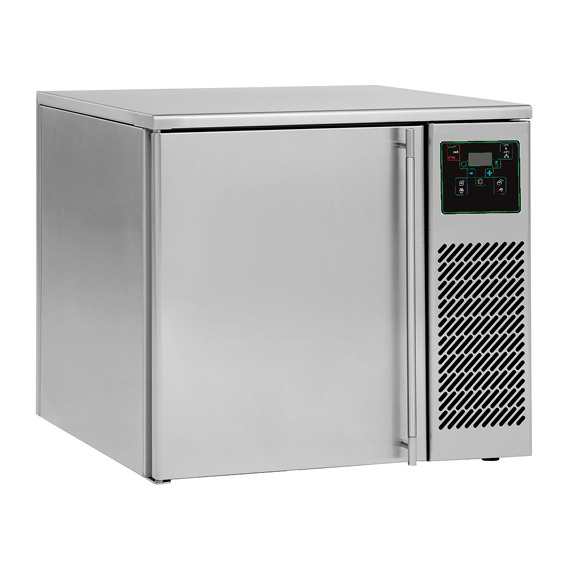

Compact, countertop blast freezer. Takes up to 3x 1/1GN trays. 8Kg chilling and 5Kg freezing capacity.
Ideal for small Restaurants, Ice Cream Parlours and Cafes.
Hard-O-Tronic®: The electronic control system that allows you to easily change the consistency of the shake according to the type of product inserted or desired style.
Start Up Phase
Gravity MIX FEEDING SYSTEM
High Efficiency Helical Beater
Direct expansion cylinder
Tank Agitator
Adjustable dispensing speed
Scan the QR Code on the front of the machine to access the most up to date equipment information: Instruction Manual, Carpi Care kit & Carpi Clean kit.
New high-performance electric gearmotors and condensers
More operational safety and more control during production
Easy cleaning, guaranteed hygiene
Model |
Friulinox CF031AE |
Dimensions (W x D x H) |
560 x 700 x 520 mm |
Yield per cycle +90/+3°C |
8 Kg |
Yield per cycle +90/-18°C |
5 Kg |
Tray capacity |
3 x 1/1GN trays |
Refrigeration | R290 |
Cooling power |
487 W |
Cooling method |
Air cooled |
Voltage |
230v / 50hz / 1ph |
Fuse / CB rating | 13 amp |
External construction
• Single-body construction with a stainless steel interior and exterior, in addition to a Scotch-Brite satin external finish
• 60 mm-thick high-density polyurethane foam insulation
• Full-length ergonomic handle and magnetic seals on 4 sides of the door
• Self-closing door with a 100° lock
• Cell fitted with easy-to-clean rounded corners
• Easily accessible evaporator for proper maintenance
• Indirect-flow aluminium electric fans on the product
• Cooling capacity expressed at evaporation temperature -25°C and condensation temperature at +45°C
Interior features
• Heated core probe with 1 measuring point
• Stainless steel grill supports and uprights that can be removed without the use of tools (GN1/1 sold separately)
• Commands, controls and safety devices
• Automatic probe detection system
• Compressor-protecting automatic-reset thermal circuit breaker
Performance Tested to European Standard EN17032
All Friulinox Blast Chiller and Freezers are fully tested using a ‘real world’ product to ensure all capacity and performance figures are achievable by the operator.
Performance – the performance test was performed with mashed potatoes in a GN1/1 H40 mm tray, with the mashed potatoes being 35 mm thick, equal to ~5 kg per tray, with blast chiller in a room measured at 30°C.
Chilling consumption – The specific blast chilling consumption expressed in kWh/kg was taken starting with an average mashed potato temperature of 65°C, arriving at +10°C at the end of blast chilling and in less than 120 minutes.
Freezing consumption – The specific consumption in quick deep freezing expressed in kWh/kg was taken starting at an average mashed potato temperature of 65°C, arriving at -18°C at the end of deep freezing and in less than 270 minutes.
Please download the specification sheet for full details of this specific machine.
